PRODUCT INTRO STELO

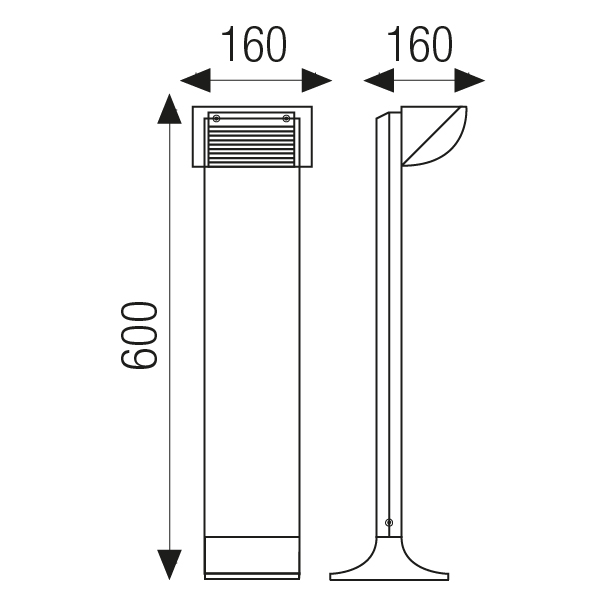

INTRO STELO - 7081 H 600

Information request
Code
Colours

  • Silver X=4

  • Anthracite X=9

  • Quality marking (CE)


    Marcatura CE

    All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

  • CL class of electrical insulation

    Classification on the basis of the class of electrical insulation.


    Classe I

    Electrical device with basic electrical insulation. Must be connected to the ground circuit of the main electrical system.

  • IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP65

    Protection against solids - First IP figure
    6 Sealed against dust
    Protection against liquids - Second IP figure
    5 Protected against jets of water

Floor mounting

Single power supply cables input

LED GX53:
It does not need the power supply.

Impact Energy (J):
2

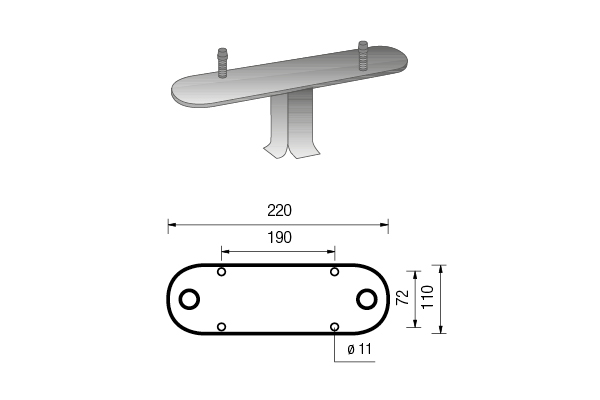

CP 90

OPTIONAL
Flange: accessory for post
Product data sheet

INTRO STELO

7081 H 600


Code Light source Power Voltage Lum.
Flux *		 Socket Colour
Temperature		 Surface
temperature		 CEI
installation zone **		 Beam angle Light data Technical
drawing		                  Notes
7081.68X LED 6,5W 658 lm Gx61 4000 K Bulb enclosed to the luminaire
7081.69X LED 6,5W 659 lm Gx62 3000 K Bulb enclosed to the luminaire
Codice
specifico		 Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires

Information request

Standard CEI EN 60598-2-13 for ground recessed luminaires

The meaning of numbering in the catalogue besides of the lamp rating of the ground recessed luminaires is derived from the “GUIDE TO GOOD INSTALLATION PRACTICE” in the annex A of the EN 60598-2-13. Installer is strongly required to consult and take into account that standard as well as the electrical installation of building applicable and in force standards.

Not driveover

Not driveover luminaire.

Not walkover

Not walkover luminaire.

✕
