Energy class:
This product contains an energy efficiency class (D) light source that complies with Regulation (EU) No 2019/2015
Floor mounting
LED:
The luminaire is supplied with a 220/240V 50/60Hz built-in power supply.
Impact Energy (J):
2
Mono-light version
Code | Light source | Power | Voltage | Lum. Flux * |
Socket | Colour Temperature |
Surface temperature |
CEI installation zone ** |

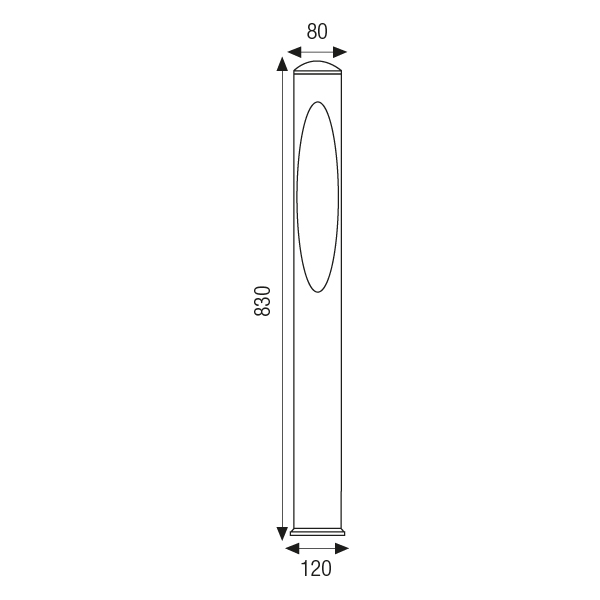

Beam angle | Light data | Technical drawing |
Notes |
---|---|---|---|---|---|---|---|---|---|---|---|---|
2610.66X | LED | 8,4W | 1400 lm | 4000 K | ||||||||
2610.67X | LED | 8,4W | 1400 lm | 3000 K | ||||||||
2610.99X | TC-L | 24W | 2G11 |
Codice specifico |
Fotometria |
---|---|
2065.660 | Zip - 175 MB |
2065.670 | Zip - 175 MB |
view not available
* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance
** Standard CEI EN 60598-2-13 for ground recessed luminaires
