PRODUCT MATCH

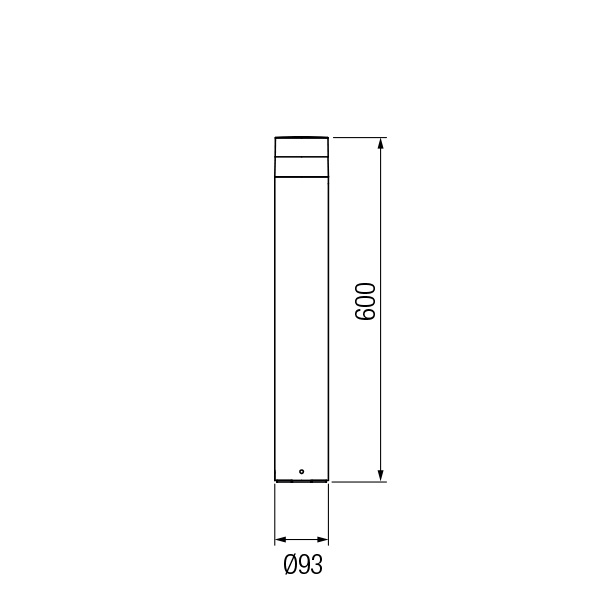

MATCH - 4331 H 600

Information request
Code
Colours

  • Black X=3

  • Silver X=4

  • Anthracite X=9

  • Quality marking (CE)


    Marcatura CE

    All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

  • CL class of electrical insulation

    Classification on the basis of the class of electrical insulation.


    Classe I

    Electrical device with basic electrical insulation. Must be connected to the ground circuit of the main electrical system.

  • IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP65

    Protection against solids - First IP figure
    6 Sealed against dust
    Protection against liquids - Second IP figure
    5 Protected against jets of water

Energy class:
LED 4000 K
This product contains an energy efficiency class (C) light source that complies with Regulation (EU) No 2019/2015

LED 3000 K
This product contains an energy efficiency class (D) light source that complies with Regulation (EU) No 2019/2015

Floor mounting

Root-mount ground fixing enclosed

The direct light emission is in full compliance with standard light pollution directives.

Double power supply entry cables (on request)

LED:
The luminaire is supplied with a 220/240V 50/60Hz built-in power supply.

Impact Energy (J):
20

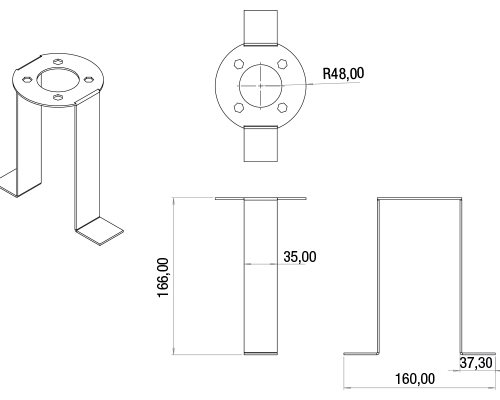

TR 43

OPTIONAL
Flange: accessory for post
Product data sheet

MATCH

4331 H 600


Code Light source Power Voltage Lum.
Flux *		 Socket Colour
Temperature		 Surface
temperature		 CEI
installation zone **		 Beam angle Light data Technical
drawing		                  Notes
4331.66X LED 11,5W 1902 lm 4000 K
4331.67X LED 11,5W 1903 lm 3000 K
Codice
specifico		 Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires

Information request

Standard CEI EN 60598-2-13 for ground recessed luminaires

The meaning of numbering in the catalogue besides of the lamp rating of the ground recessed luminaires is derived from the “GUIDE TO GOOD INSTALLATION PRACTICE” in the annex A of the EN 60598-2-13. Installer is strongly required to consult and take into account that standard as well as the electrical installation of building applicable and in force standards.

Not driveover

Not driveover luminaire.

Not walkover

Not walkover luminaire.

✕
