PRODUCT FLASH

FLASH - 1038 BIG

Information request
Code
Colours

  • Silver X=4

  • Anthracite X=9

  • Quality marking (CE)


    Marcatura CE

    All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

  • CL class of electrical insulation

    Classification on the basis of the class of electrical insulation.


    Classe I

    Electrical device with basic electrical insulation. Must be connected to the ground circuit of the main electrical system.

  • IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP54

    Protection against solids - First IP figure
    5 Protected against dust
    Protection against liquids - Second IP figure
    4 Protected against splashes

Notes

The holder is enclosed to the luminaire
Bulbs supplied only on request

Energy class:
This product contains an energy efficiency class (E) light source that complies with Regulation (EU) No 2019/2015

Recessed wall version

Double power supply entry cables (on request)

Holder must be recessed flush with the wall surface

CS 19:
Technopolymer holder to be recessed into the wall 275x144x80 mm

Impact Energy (J):
1

Product data sheet

FLASH

1038 BIG


Code Light source Power Lum.
Flux *		 Socket Colour

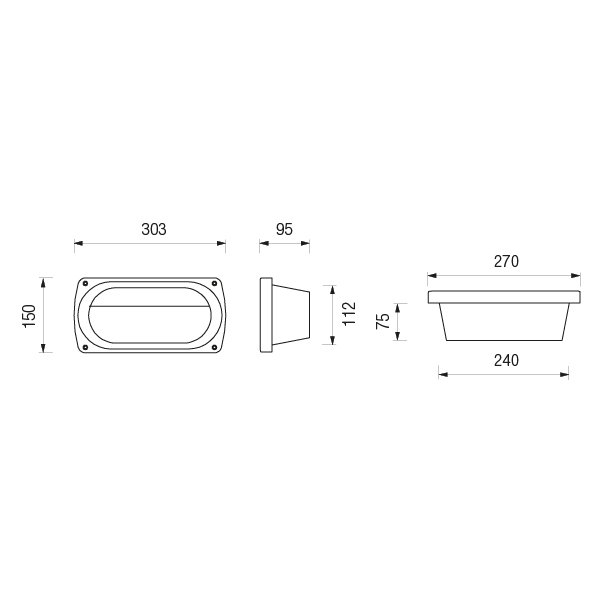

Temperature		 Light data Technical
drawing
1038.00X LED 8W E27
1038.55X LED 13W 1790 lm 4000 K
1038.56X LED 13W 1790 lm 3000 K
1038.95X TC-D 26W G24 d-3
Codice
specifico		 Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

Information request

Standard CEI EN 60598-2-13 for ground recessed luminaires

The meaning of numbering in the catalogue besides of the lamp rating of the ground recessed luminaires is derived from the “GUIDE TO GOOD INSTALLATION PRACTICE” in the annex A of the EN 60598-2-13. Installer is strongly required to consult and take into account that standard as well as the electrical installation of building applicable and in force standards.

Not driveover

Not driveover luminaire.

Not walkover

Not walkover luminaire.
