PRODUCT GEO Ø245

GEO Ø245 - 4470

Information request
Code
Colours

  • Black X=3

  • Silver X=4

  • Quality marking (CE)


    Marcatura CE

    All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

  • CL class of electrical insulation

    Classification on the basis of the class of electrical insulation.


    Classe I

    Electrical device with basic electrical insulation. Must be connected to the ground circuit of the main electrical system.

  • IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP67

    Protection against solids - First IP figure
    6 Sealed against dust
    Protection against liquids - Second IP figure
    7 Protected against immersion

Notes

Perfectly flush with the floor black die cast aluminium bezel (projection 0 mm) as do not obstacle the walking.
The holder is enclosed to the luminaire

Energy class:
4470.20X
This product contains an energy efficiency class (B) light source that complies with Regulation (EU) No 2019/2015

4470.21X
This product contains an energy efficiency class (C) light source that complies with Regulation (EU) No 2019/2015

Recessed ground version

Symbol indicating the temperature of the touchable surfaces

Do not install in swimming pools or fountains.
Do not install near a swimmingpool.

Double power supply entry cables with PG13,5 (ø 6÷12 mm). Use only flexible cables to grant protection against water exposure (IP67).

LED:
The luminaire is supplied with a 220/240V 50/60Hz built-in power supply.

Maximum load:
Kgs 3500 at 5 km/h max speed

The holder must be recessed into the ground providing a drainage-gravel for at least 30 cm.

CS 90:

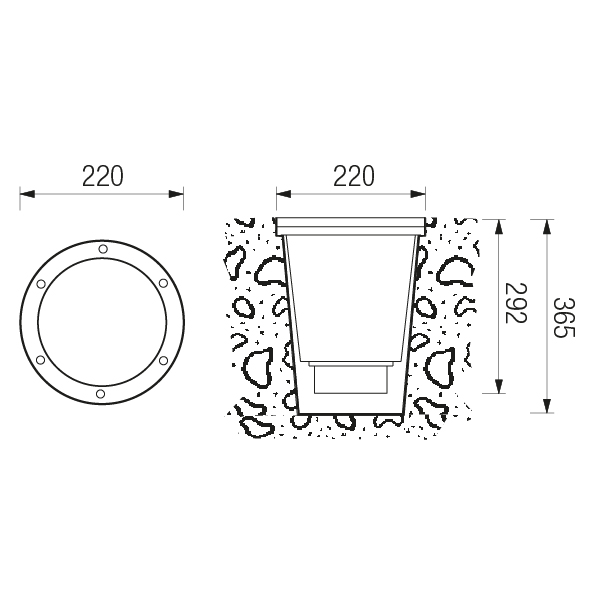

Technopolymer holder Ø 230/180 mm - h 367 mm

Impact Energy (J):
10

Product data sheet

GEO Ø245

4470

LED available in various optics : 29°, 46°, 72°.

Code Light source Power Voltage Lum.
Flux *		 Socket Colour
Temperature		 Surface
temperature		 CEI
installation zone **		 Beam angle Light data Technical
drawing		                  Notes
4470.20X LED COB 28W 3820 lm 4000 K <50°C 3 Symmetrical reflector
4470.21X LED COB 28W 3800 lm 3000 K <50°C 3 Symmetrical reflector
Codice
specifico		 Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires

Information request

Standard CEI EN 60598-2-13 for ground recessed luminaires

The meaning of numbering in the catalogue besides of the lamp rating of the ground recessed luminaires is derived from the “GUIDE TO GOOD INSTALLATION PRACTICE” in the annex A of the EN 60598-2-13. Installer is strongly required to consult and take into account that standard as well as the electrical installation of building applicable and in force standards.

Not driveover

Not driveover luminaire.

Not walkover

Not walkover luminaire.

✕

recessed / GEO Ø245
