HELIOS WALL

1022

Recessed wall luminaire.

Code Light source Power Voltage Lum.
Flux *		 Socket Colour
Temperature		 Surface
temperature		 CEI
installation zone **		 Beam angle Light data Technical

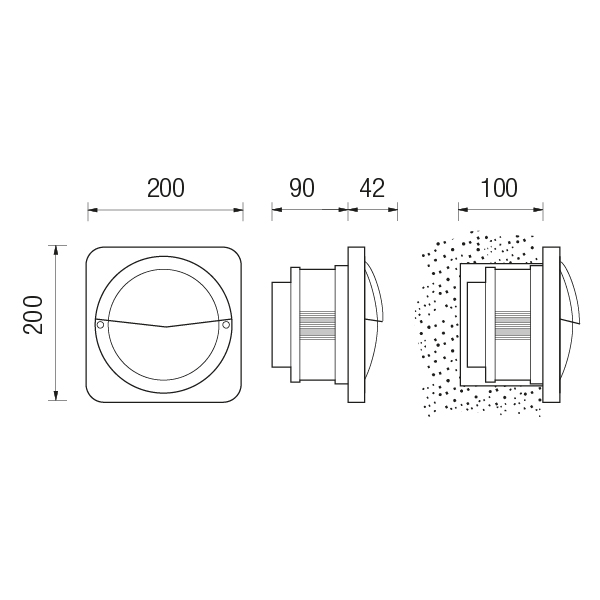

drawing		                  Notes
1022.68X LED 6,5W 650 lm Gx53 4000 K Bulb enclosed to the luminaire
1022.69X LED 6,5W 650 lm Gx53 3000 K Bulb enclosed to the luminaire
Codice
specifico		 Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires
