PRODUCT MICRO QUAD

MICRO QUAD - 5074

Information request
Code
Colours

There are no colors for the product.

  • Quality marking (CE)


    Marcatura CE

    All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

  • CL class of electrical insulation

    Classification on the basis of the class of electrical insulation.


    Classe III

    Device working with very low voltage (12V, 24V).

  • IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP67

    Protection against solids - First IP figure
    6 Sealed against dust
    Protection against liquids - Second IP figure
    7 Protected against immersion

Notes

The holder is enclosed to the luminaire

Recessed ground version

Symbol indicating the temperature of the touchable surfaces

Do not install in swimming pools or fountains.
Do not install near a swimmingpool.

Single power supply entry cable with PG 7 (Ø 3,5÷7 mm). Use only flexible cables to grant protection against water exposure (IP67).

LED:
The luminaire needs a remote power supply

Maximum load:
Kgs 2000 at 5 km/h max speed

The holder must be recessed into the ground providing a drainage-gravel for at least 30 cm.

CS 44:

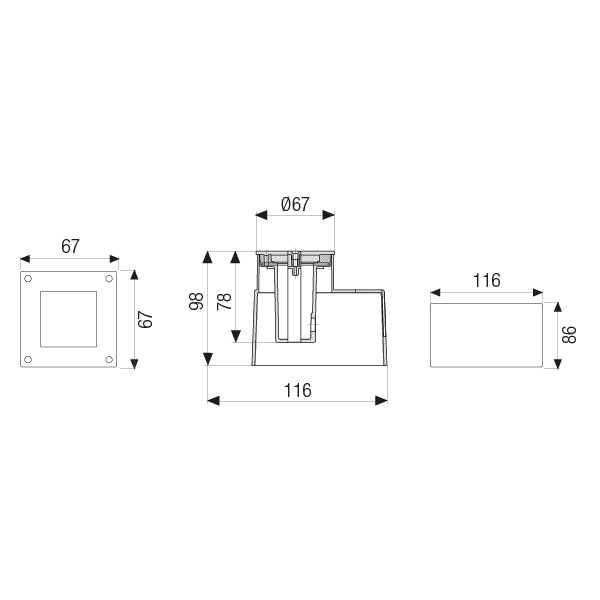

Technopolymer holder to be recessed h 94 mm - 114 x 85 mm - ⧄ 64 mm

Impact Energy (J):
10

Product data sheet

MICRO QUAD

5074


Code Light source Power Voltage Lum.
Flux *		 Socket Colour
Temperature		 Surface
temperature		 CEI

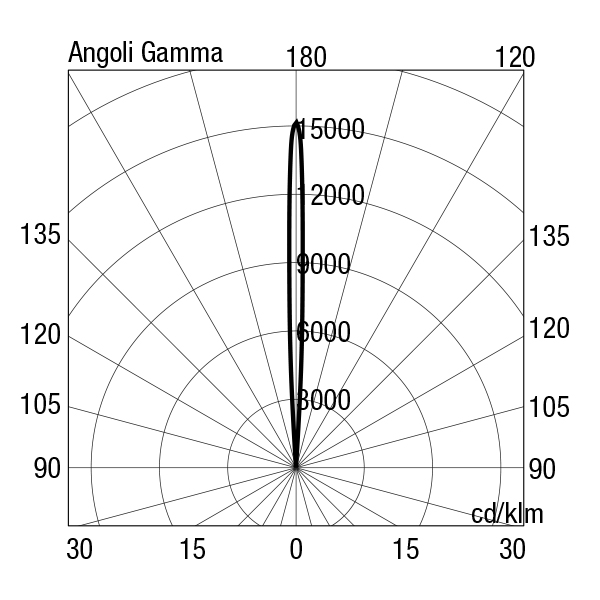

installation zone **		 Beam angle Light data Technical
drawing		                  Notes
5074.010 LED max 1,3W 24V 210 lm 4000 K <40°C 3 Remote power supply (supplied on request)
5074.020 LED max 1,3W 24V 210 lm 3000 K <40°C 3 Remote power supply (supplied on request)
Codice
specifico		 Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires

Information request

Standard CEI EN 60598-2-13 for ground recessed luminaires

The meaning of numbering in the catalogue besides of the lamp rating of the ground recessed luminaires is derived from the “GUIDE TO GOOD INSTALLATION PRACTICE” in the annex A of the EN 60598-2-13. Installer is strongly required to consult and take into account that standard as well as the electrical installation of building applicable and in force standards.

Not driveover

Not driveover luminaire.

Not walkover

Not walkover luminaire.

✕

recessed / MICRO QUAD
