PATH GROUND - 3814 L 654 mm - 24 LED

Information request
Code
Colours

  • Silver X=4

  • Quality marking (CE)


    Marcatura CE

    All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

  • CL class of electrical insulation

    Classification on the basis of the class of electrical insulation.


    Classe I

    Electrical device with basic electrical insulation. Must be connected to the ground circuit of the main electrical system.

  • IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP67

    Protection against solids - First IP figure
    6 Sealed against dust
    Protection against liquids - Second IP figure
    7 Protected against immersion

Notes

The holder is enclosed to the luminaire

Recessed ground version

Symbol indicating the temperature of the touchable surfaces

Do not install in swimming pools or fountains.
Do not install near a swimmingpool.

Double power supply entry cables (on request)

LED:
The luminaire is supplied with a 220/240V 50/60Hz built-in power supply.

Walkable luminaire max 1000 Kgs

The holder must be recessed into the ground providing a drainage-gravel for at least 30 cm.

Impact Energy (J):
10

PT10

Fitting needed for leveling several appliances in a continuous row
CN 22

OPTIONAL
IP68 connecting device H2O STOP with 3 poles for cables between Ø 7÷13 mm
CN 23

OPTIONAL
IP68 connecting device H2O STOP with 3 poles, 3 ways for cables between Ø 6÷11 mm
Product data sheet

PATH GROUND

3814 L 654 mm - 24 LED


Code Light source Power Voltage Lum.
Flux *		 Socket Colour
Temperature		 Surface
temperature		 CEI
installation zone **		 Beam angle Light data Technical

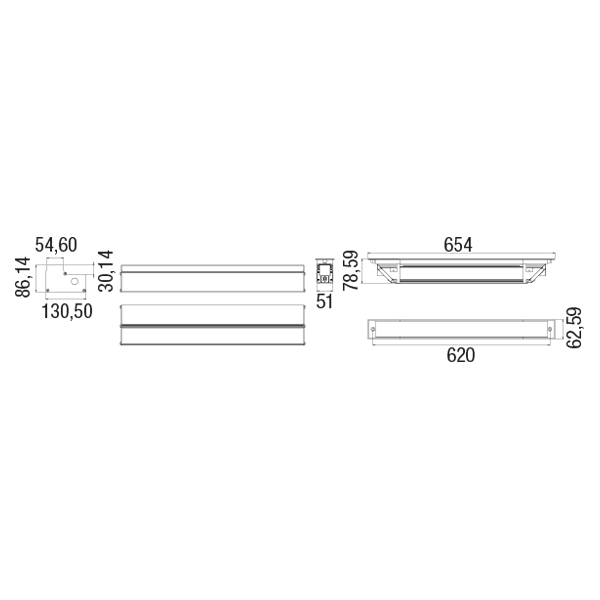

drawing		                  Notes
3814.664 LED CRI80 16,8W 2600 lm 4000 K <40°C 2
3814.674 LED CRI90 16,8W 2200 lm 3000 K <40°C 2
Codice
specifico		 Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires

Information request

Standard CEI EN 60598-2-13 for ground recessed luminaires

The meaning of numbering in the catalogue besides of the lamp rating of the ground recessed luminaires is derived from the “GUIDE TO GOOD INSTALLATION PRACTICE” in the annex A of the EN 60598-2-13. Installer is strongly required to consult and take into account that standard as well as the electrical installation of building applicable and in force standards.

Not driveover

Not driveover luminaire.

Not walkover

Not walkover luminaire.

✕
