PRODUCT PIXEL

PIXEL - 3805 Ø 25

Information request
Code
Colours

There are no colors for the product.

  • Quality marking (CE)


    Marcatura CE

    All the products are in compliance to EN 60598-1 and part two applicable standards and to EMC applicable standards. The CE marking, applied on the products, certify their conformity with the European directives: 73/23 CEE, 93/68 CE, 2006/95/CE, 2014/35/UE (Low Voltage Directive). 89/336 CEE, 93/68 CE, 2004/108/CE, 2014/30/UE (Electromagnetic Compatibility Directive).

  • CL class of electrical insulation

    Classification on the basis of the class of electrical insulation.


    Classe III

    Device working with very low voltage (12V, 24V).

  • IP Protection index

    The degree of protection of light fixtures is indicated by the letters IP (international protection) followed by two figures, the first of which indicates the index of protection againt the penetration of solid bodies and the second of liquids. For example: IP54 indicates that the device has an index of protection 5 against the penetration of solids and 4 against the penetration of water.


    IP67

    Protection against solids - First IP figure
    6 Sealed against dust
    Protection against liquids - Second IP figure
    7 Protected against immersion

Notes

The holder is enclosed to the luminaire
Install in non traffic areas (for example near walls)

Energy class:
This product contains an energy efficiency class (C) light source that complies with Regulation (EU) No 2019/2015

Recessed ground version

Symbol indicating the temperature of the touchable surfaces

Do not install in swimming pools or fountains.
Do not install near a swimmingpool.

Single power supply cables input

LED:
The luminaire needs a remote power supply (supplied only on request)

Not driveover luminaire

The holder must be recessed into the ground providing a drainage-gravel for at least 30 cm.

CS 01:
Technopolymer holder Ø 24 mm - h 100 mm

Impact Energy (J):
20

CN 24

OPTIONAL
IP67 connecting device with driver 350 mA with 2 poles, 3 ways for cables Ø 4÷9,5 mm.

Schematics

SERIE CONNECTION


max 48Vdc SELV

IP20 POWER SUPPLY
PIXEL Ø25
350 mA 1…12 luminaires Cod. D 1

PARALLEL CONNECTION - SELV


Unit nr. depends from power of driver and cable length

IP20 POWER SUPPLY
PIXEL Ø25
350 mA 1…14 luminaires Cod. D 8 + CN 24* (MANDATORY for each luminaire)
(*) CN 24 must be set. Refer to CN24 instruction manual for setting.

Product data sheet

PIXEL

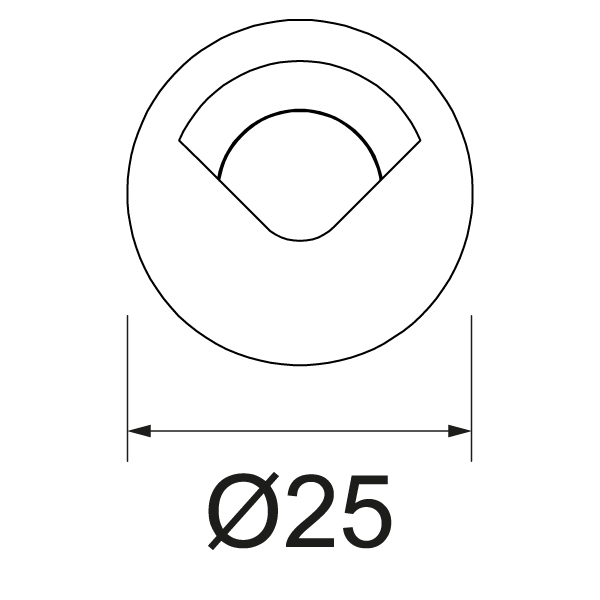

3805 Ø 25


Code Light source Power Voltage Lum.
Flux *		 Socket Colour
Temperature		 Surface
temperature		 CEI
installation zone **		 Beam angle Light data Technical
drawing		                  Notes
3805.660 LED 1W 110 lm 4000 K <40°C 2 60°
3805.670 LED 1W 98 lm 3000 K <40°C 2 60°
Codice
specifico		 Fotometria
2065.660 Zip - 175 MB
2065.670 Zip - 175 MB

view     not available

* Lumen rating is related to the flux emitted by the LED module and not to the flux emitted by the appliance

** Standard CEI EN 60598-2-13 for ground recessed luminaires
